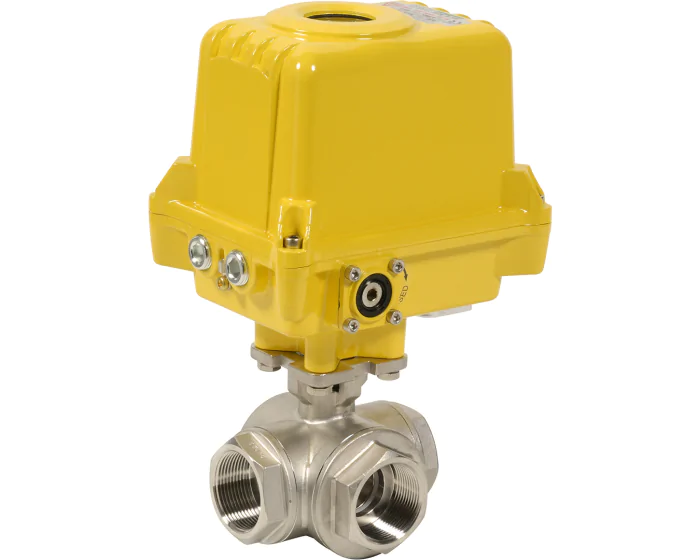

The 780L or 781T 3-way ball valve has a stainless steel 1.4408 body and ball and PTFE seats. It is actuated with an ATEX SA05-X electric actuator. PS: 63 bar, TS: -30 / +180°C. G threaded fittings.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| ATEX atmosphere | IIB |
| Shaft/stem matérial | Stainless steel 316 |
| Manual override | By key |
| Declutchable | No |
| DN | DN50 - 2'' |
| Duty service | S4 duty service - 50% |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Outdoor |
| Body material | Stainless steel CF8M (1.4408) |
| ATEX protection mode | Ex d |
| Number of ways | 3 |
| Bore | Reduced |
| Packing gland | PTFE |
| PS (bar) | 63 |
| Power (W) | 6 |
| Connections | BSP FF |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | SA05-X |
| Electric actuator series | SA-X/NA-X ATEX series |
| Seats | PTFE |
| Operating time (s) | 17.0 |
| Surface temperature | T4 |
| Voltage | 230 V AC |
| TS max (°C) | 180 |
| TS min (°C) | -30 |
| 3-way type | T-port |
| ATEX zone | 1. 2 |
| Warranty period | 1 year |
| CE | Risk category III |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Stainless steel CF8M (1.4408) Reduced BSP FF 230 V AC DN8 - 1/4'' | 275400023310 | S1004742 |
€737.26
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced BSP FF 230 V AC DN10 - 3/8'' | 275401023310 | S1004743 |
€737.26
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced DN15 - 1/2'' BSP FF 230 V AC | 275402023310 | S1004744 |
€737.26
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced DN20 - 3/4'' BSP FF 230 V AC | 275403023310 | S1004745 |
€773.16
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced DN25 - 1'' BSP FF 230 V AC | 275404023310 | S1004746 |
€822.87
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced DN32 - 1''1/4 BSP FF 230 V AC | 275405023310 | S1004747 |
€859.26
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced DN40 - 1''1/2 BSP FF 230 V AC | 275406023310 | S1004748 |
€986.54
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced DN50 - 2'' BSP FF 230 V AC | 275407023310 | S1004749 |
€1,073.31
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced BSP FF 230 V AC DN8 - 1/4'' | 275420023310 | S1004750 |
€698.76
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced BSP FF 230 V AC DN10 - 3/8'' | 275421023310 | S1004751 |
€698.76
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced DN15 - 1/2'' BSP FF 230 V AC | 275422023310 | S1004752 |
€698.76
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced DN20 - 3/4'' BSP FF 230 V AC | 275423023310 | S1004753 |
€744.60
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced DN25 - 1'' BSP FF 230 V AC | 275424023310 | S1004754 |
€795.60
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced DN32 - 1''1/4 BSP FF 230 V AC | 275425023310 | S1004755 |
€798.79
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced DN40 - 1''1/2 BSP FF 230 V AC | 275426023310 | S1004756 |
€920.63
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Reduced DN50 - 2'' BSP FF 230 V AC | 275427023310 | S1004757 |
€1,050.60
(excl. btw)
|
add to cart |
